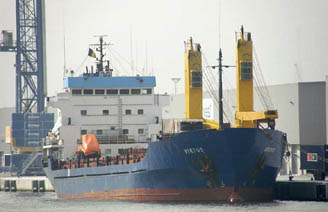

т/х Виртус ] |
Type |
tweendecker/sid – boxshaped
|
|
Call
sign |
J8B3204 |
Official
no |
9676
|
Imo
no. |
8416748 |
Flag |
St.Vincen
and Grernadines |
Built |
1985 |
Dwat |
abt
4800 mt |
Dwcc |
abt
4350 on about 6.95 meter draft even keel |
Class |
Russian
register,unrestricted nav.strengthened for heavy cargo,equipped for
carriage of containers |
GT/NT |
3.307 / 2.000 london rules |
Dimensions |
l.o.a.:
92,14 m / l.p.p.: 83,70 m / breadth: 15,80 m |
Holds |
1
hold |
Capacity |
grain
/ bale 225.310 /220.189 cbft |
Hatches |
2
hatches |
Hatch
covers type |
folding
hatchcovers with hydravlic opening system |
Dim. |
lover
hold 60.50 x 14.20 m of which 43,00 m fully box |
Dim
tweendeck |
62,50
x 14,20 m |
Dim.
hatches maindeck |
NR
1 - 27,30X12,40/10,60 m (fore),NR 2 - 27,30X12,40 m |
Dim.hatches
tweendeck |
NR
1 - 26,18X12,40/8,20 M (fore),NR 2 - 26,18X12,40/10,80 M (aft) |
Height
in tweendeck |
3,86
/ 3,96 meter - lower/upper hold |
Cranes |
2
cranes each 30 mtons - sidemounted portside,combinable upto 60 mtons
in midship |
Containers |
container
fitted 217 teu/104 feu |
IMO |
IMO
fitted |
Ventilation |
electrically
ventilated 30 times per hour b.e.h. |
strength
of deck |
tanktop:
12,00 mtons/m2
tweendeck: 2,80 mtons/m2
weatherdeck: 2,04 mtons/m2 in outer lanes resp. |
container
intake |
215
units of 20' - 111 hold/104 on deck
alternatively:
103 units of 40' and 6 units of 20' - 51 feu+6 teu hold / 52 feu on
deck |
stackweights |
tanktop:
20' = 60,00 ts per stack
40' = 90,0 ts per stack
weatherdeck: 20' = 30,0 ts per stack
40' = 40,0 ts per stack
distribution of container weights within a single 20ft/40ft stack
on
deck to comply with the board manual for stowing and lashing of
containers approved by RMRS
fully fitted with loose lashing/stowage material for containers
in
hold/on deck
|
main
engine and auxiliaries |
main
engine: MAK 8MU 453 B / output 2.400 kw at 600 rpm
diesel engine with reserve-reduction gear/fixed propeller
auxiliaries: 3 diesel generators Scanti 303 kw / 1500 rpm
bowthruster 184 kw |
speed
/ consumption |
abt.
13,0 knots on abt. 9,5 mtons IFO
plus abt. 0,75 mton gasoil
speed/consumption at beaufort 3 with 5,31 m draft, even keel.
port consusmption abt. 0,75 mton gasoil per 24 hours, when idle
1,5 - 2,0 mtons by working cranes/operating reefer containers |
bunker
specification |
bunker
quality to be in accordance with following specifications:
IFO 180 = iso 8217/96 RME 26 with s.g. max 0,991
gasoil = iso 8217 /96 grade dma with s.g. max 0,860 |
tankcapacities |
IFO
abt. 300 cbm (abt. 290 ts)
gasoil abt. 50 cbm (abt. 40 ts)
ballastwater 1.760 mts
freshwater 50 mts |
|
|
|
|
|
